Brackish Groundwater Desalination | Desalination System

Brackish Groundwater DesalinationBrackish Water Reverse Osmosis (BWRO) System

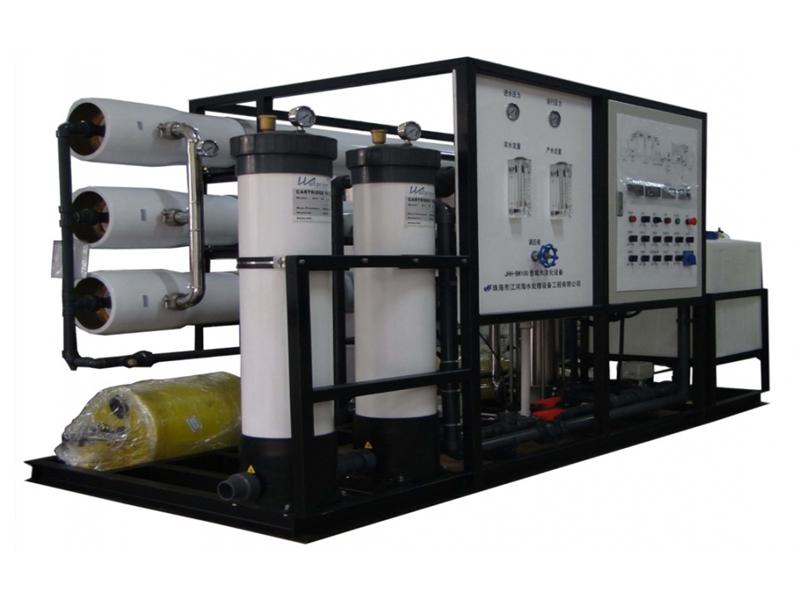

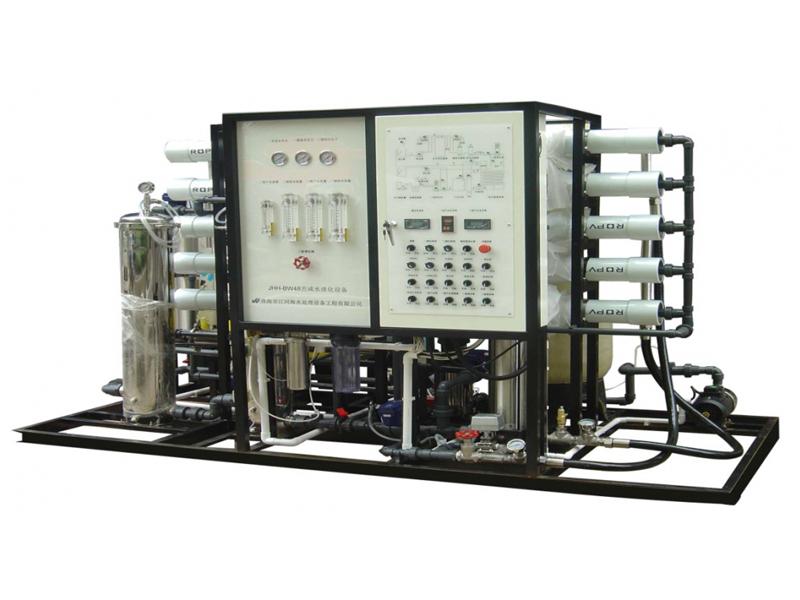

The JHH-BW series brackish groundwater desalination plant (available in a large or medium size) is designed for saline-alkali area and salt-water encroached land. Brackish water contains more saline than fresh water and is too salty to be used without treatments. Using unique technology, our products offer an excellent solution with the purified water conforming Guidelines for Drinking Water Quality released by the WHO and National Standard for Drinking Water Quality.

Our RO system produce direct drinking water by eliminating the harmful effects of heavy metals, bacteria, and more as the system utilizes a semipermeable membrane that separates an extremely high percentage of unwanted molecules and materials.

Features:

Using a PLC automatic control system, the plant works automatically.
Equipped with an on-line water quality monitor, users can carry out real time monitoring of the produced water quality.

More info:

Feed salinity: 1000-10000mg/L
Rejection: ≥98%
Feed temperature: 2-40℃
Output salinity: ≤500mg/L
Recovery: 10-65%
Power: 380V/50Hz or 220V (440V)/60Hz

Optional Models

Model	Output capacity (m³/h)	Operational pressure(Mpa)	Electri-comsumption(Kwh/T)	Dimension(mm)	Construction
JHH-BW2	0.1	1.5-4	11	580×440×1600	Vertical
JHH-BW5	0.25	1.5-4	8	650×440×1600	Vertical
JHH-BW10	0.5	1.5-4	4.4	800×600×1700	Vertical
JHH-BW20	1	1.5-4	4	2500×900×1600
JHH-BW50	2.5	1.5-4	3	2500×1200×1600
JHH-BW100	5	1.5-4	2.2	2500×1500×1800
JHH-BW200	10	1.5-4	2	3400×1500×1800

Send an Inquiry

JHH began manufacturing seawater desalination equipment and water treatment system in the early 2002. We are committed to meeting or exceeding your needs on seawater desalination and water purification equipment. Our water desalination systems use advanced reverse osmosis (RO) seawater desalination technology to help our customers achieve high water filtration performance with lower operation cost. No matter your projects require marine vessel installations or land based applications, JHH will strive to provide you with custom-engineered turn-key solutions complied with your local regulatory requirements of water treatment.
