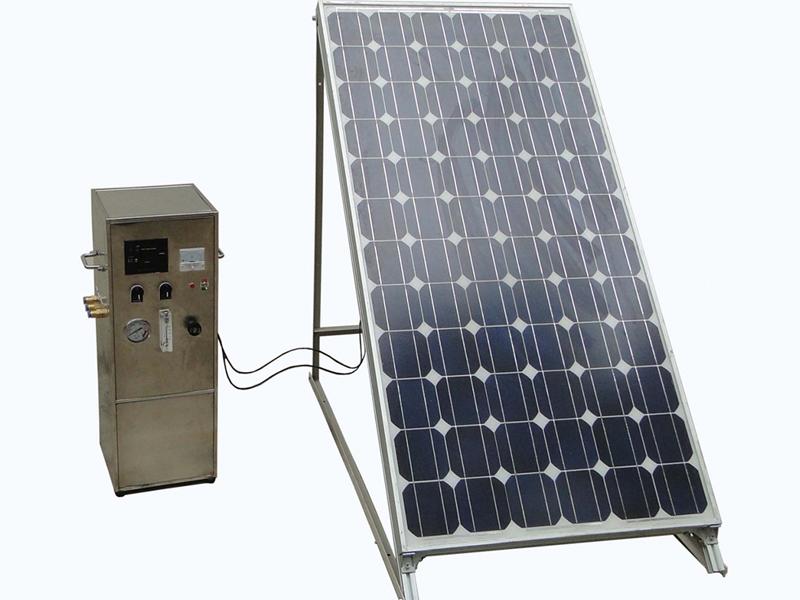

Solar-powered Desalination SystemPhotovoltaic Reverse Osmosis (PVRO) for Seawater Desalination
Solar-powered Desalination

Statistics say that nearly 4 billion people face water scarcity, and desalination is the key to moving from scarcity to abundance. Desalination equipment is typically run using fossil fuels that cause some of the problems that lead to water shortages. Therefore, we developed this solar powered desalination watermaker.

Procedures:
  • Portable Solar Powered Desalination Watermaker directly uses solar power to fill an accumulator.
  • The motor will drive the high-pressure pump with the help of accumulator discharge.
  • Drinking water will be produced through reverse osmosis.
Benefits:
  • Portable ; reasonable size and easy operation
  • Save a lot on water expenses; avoids using electricity
  • Reliable supply; ideal for off-grid applications
  • Sustainable; utilize the abundant sun resource
  • Fully automatic control
Parameters
  • Capacity: 5-20L per hour
  • 12V-110V (DC) or 110V-380V (AC)
  • Feed water temperature: 2.0℃~45℃
  • Feed water quality: SDI≤5
  • Max. adjustable pressure: 6.5MPa
  • Output water salinity: ≤700mg/L
Optional Models
Model JHH-S1 JHH-S2
Power supply mode AC22V/DC24V Accumulator battery
Charging mode \ Solar energy, hand-powered, AC power, wind power
Weight assembly 17kg×1case 25kg×2case (with wheel)
Movement Portable/backpack Portable/trolly case

Send an Inquiry

JHH is a seasoned manufacturer of commercial water purification systems and equipment. We innovate, design and manufacture state of the art seawater reverse osmosis systems, wastewater treatment systems and water purification systems for onshore and offshore applications. From isolated islands to drought prone areas, from coastal to desert environments, we provide custom engineered solutions to suit different water treatment demands around the world. We are capable of completing a turn-key seawater desalination plant or water purification plant with our quality workmanship, professional technical service and satisfied after-sale support. We welcome all questions regarding our products, please feel free to connect with us for an initial consultation.

Tags
Solar-powered desalination unit Solar-Powered Desalination Ultra Filtration Plant Water Desalination Processes Water Filters & Filtration Systems China RO System Marine Water Maker Manufacturer
Related Products
    1. Brackish Groundwater Desalination
    2. Brackish Groundwater Desalination

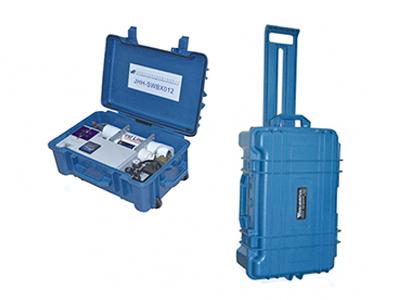

    1. Portable Desalination
    2. Portable Desalination

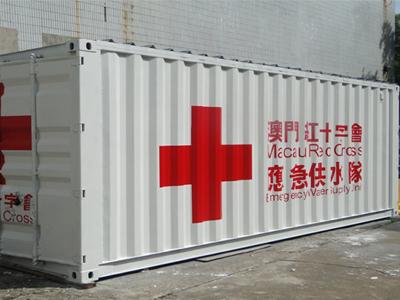

    1. Emergency Water Purification
    2. Emergency Water Purification
    1. Seawater Desalination with Remote Supervision
    2. Seawater Desalination with Remote Supervision

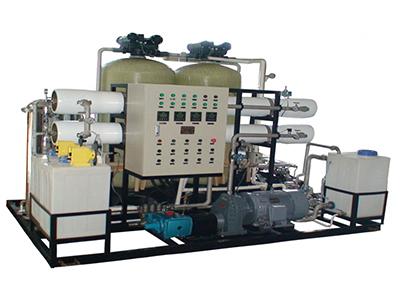

    1. Marine Seawater Desalination
