On-shore / Land-based Desalination

On-shore Desalination / Land-based Watermaker Seawater Reverse Osmosis Desalination for land-based applications

JHH-SW series land-based watermakers are designed for a wide range of land-based water treatment applications. We are sure to have the right desalination system for your particular needs. The watermaker is a fully autonomous device that can be portable or fixed depending on your requirements.

With over 20 years of experience, JHH land-based watermakers have proven to be the most user-friendly and reliable on the market. Our products are unique and ensure easy field servicing and routine maintenance, maximizing the lifespan.

Our RO system can produce direct drinking water by eliminating the harmful effects of heavy metals, bacteria, etc. since the system employs a semipermeable membrane that separates an extremely high percentage of unwanted molecules. With no chemicals added in the whole process, the drinking water entirely conforms to Guidelines for Drinking Water Quality released by WHO and National Standard for Drinking Water Quality.

Features:

Fully automatic configuration with 'one touch' operation makes it very convenient to operate and maintain.
Equipped with an automatic alarm system. It will automatically alarm and diagnose the problem if any fault occurs.

Specs:

Inflow salinity≤36000ppm
Desalinization rate≥98%
Inflow temperature 2~40℃
Production: 0.05~10000ton per day
Power: 380V/50Hz, or 220V(440V)/60Hz

Optional Models

Model	Output capacity (m³/h)	Operational pressure(Mpa)	Electri-comsumption(Kwh/T)	Dimension(mm)	Construction
JHH-SW1	0.05	4-6.5	15	580×440×1600	Vertical
JHH-SW2	0.1	4-6.5	11	580×440×1600	Vertical
JHH-SW3	0.15	4-6.5	8	580×440×1600	Vertical
JHH-SW5	0.25	4-6.5	7.8	650×440×1600	Vertical
JHH-SW10	0.5	4-6.5	7.5	800×600×1700	Vertical
JHH-SW20	1	4-6.5	7	2500×700×1200	Horizontal
JHH-SW50	2.5	4-6.5	6	2500×1200×1700	Horizontal
JHH-SW100	5	4-6.5	4	3400×1500×1800	Horizontal
JHH-SW200	10	4-6.5	3.5	3400×2000×1800	Horizontal
JHH-SW500	25	4-6.5	3	7500×2500×1800	Horizontal

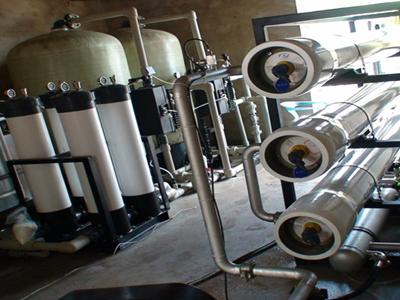

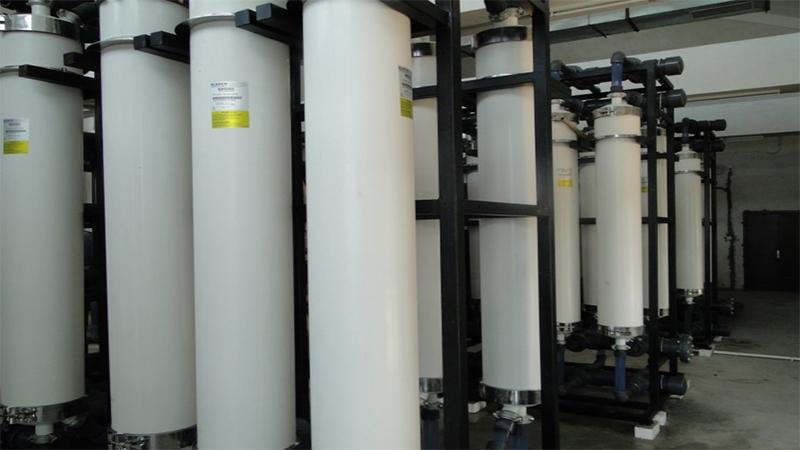

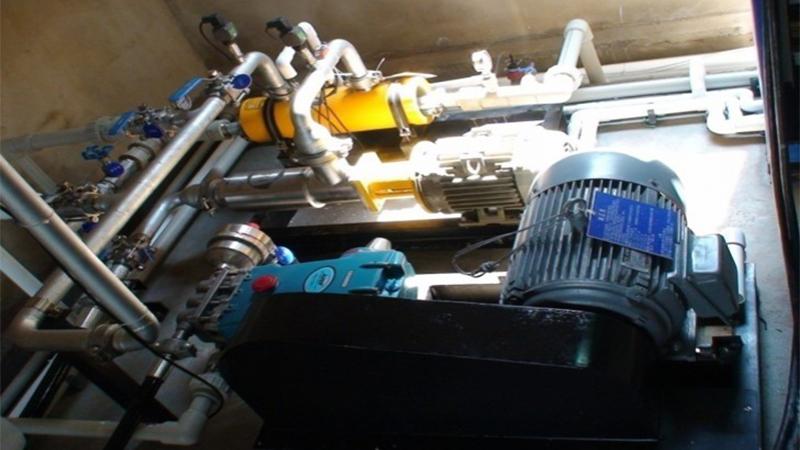

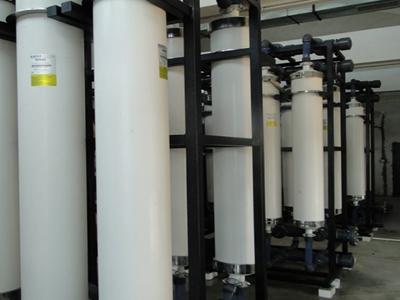

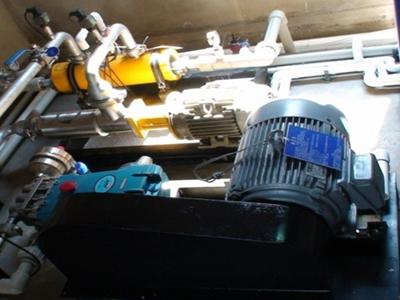

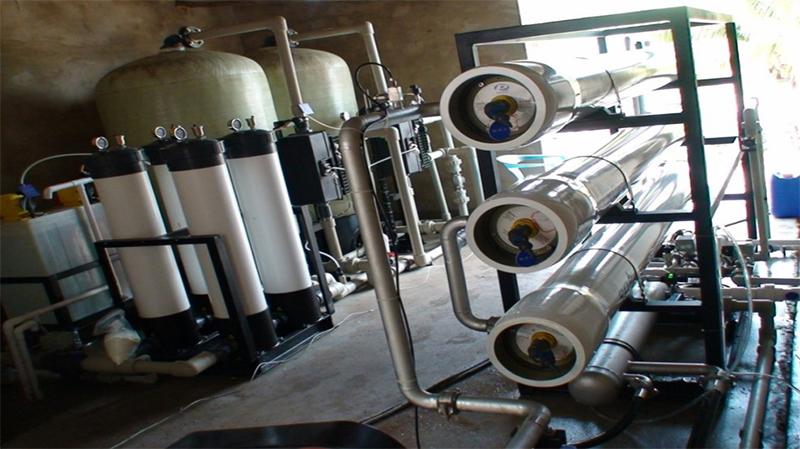

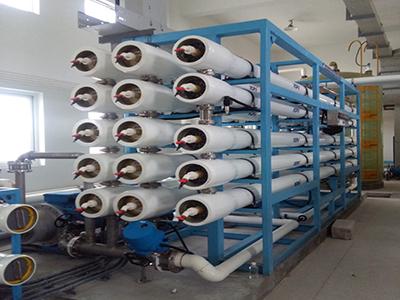

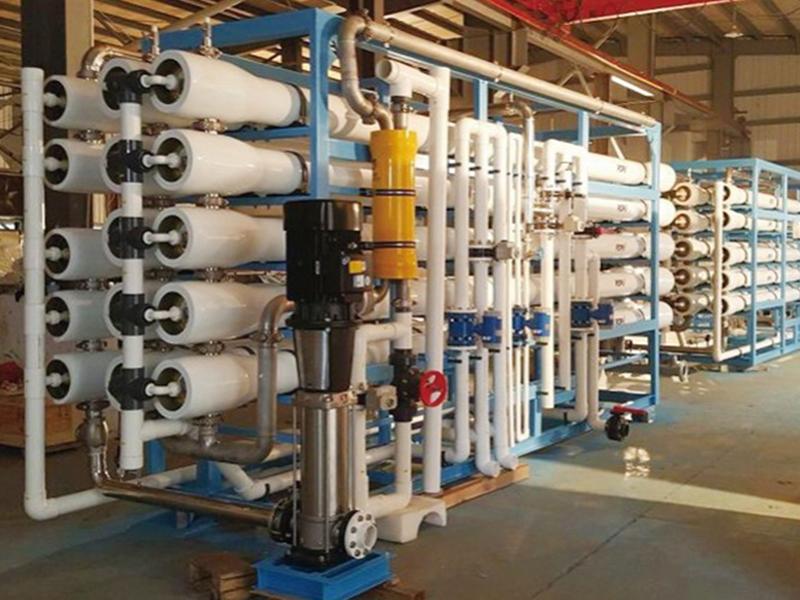

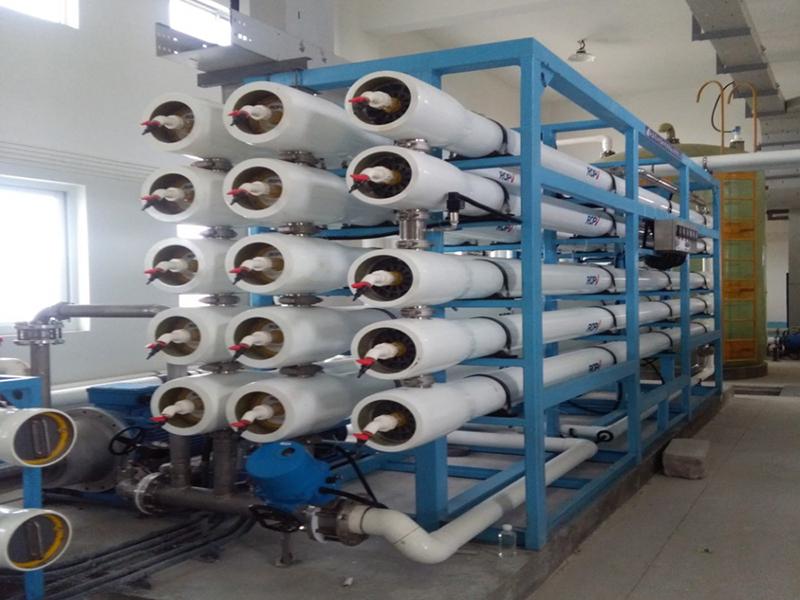

Gallery

Send an Inquiry

JHH began manufacturing seawater desalination equipment and water treatment system in the early 2002. We are committed to meeting or exceeding your needs on seawater desalination and water purification equipment. Our water desalination systems use advanced reverse osmosis (RO) seawater desalination technology to help our customers achieve high water filtration performance with lower operation cost. No matter your projects require marine vessel installations or land based applications, JHH will strive to provide you with custom-engineered turn-key solutions complied with your local regulatory requirements of water treatment.
